Lawn irrigation components are the individual parts that make up your in-ground sprinkler or drip irrigation system: the controller, backflow preventer, zone valves, supply pipes, sprinkler heads, and sensors.
When one of these parts fails, the whole system can suffer, and in San Antonio’s relentless summers, that means a dead lawn, a spiking water bill, or a home inspection flag that complicates your sale.
At Gatewood Superior Inspections, we evaluate irrigation systems as part of every full home inspection. This guide covers each major component, how it works, what it costs to replace, and what tells us a system is in trouble.
The 7 Core Lawn Irrigation Components
Every in-ground residential irrigation system runs on the same set of parts. Here’s what each one does and why it matters.
1. The Controller (Timer)
The controller is the brain of the system. It tells the zone valves when to open and close, sets the watering schedule by zone, and manages total run time.
Basic programmable controllers run on a fixed day-and-time schedule. Smart controllers (like the Rachio or Rain Bird Wi-Fi models) pull real-time weather data from your local station and skip watering cycles automatically when rain is expected, or the soil is saturated.
For San Antonio homeowners, a smart controller isn’t just a convenience; it’s one of the easiest ways to stay in compliance with San Antonio Water System (SAWS) seasonal watering restrictions without thinking about it.
SAWS also offers rebates for qualifying smart controller upgrades through the SAWS WaterSaver program. If yours is a basic timer from 2005, that’s worth knowing before a home sale.
Replacement cost: $50–$250 depending on the number of zones and smart capability.
2. The Backflow Preventer
The backflow preventer is a code-required safety device that stops irrigation water from flowing backward into your home’s drinking water supply. It is not optional.
The Texas Commission on Environmental Quality requires that all irrigation systems connected to a potable water line have a backflow preventer installed and tested annually by a TCEQ-licensed backflow tester.

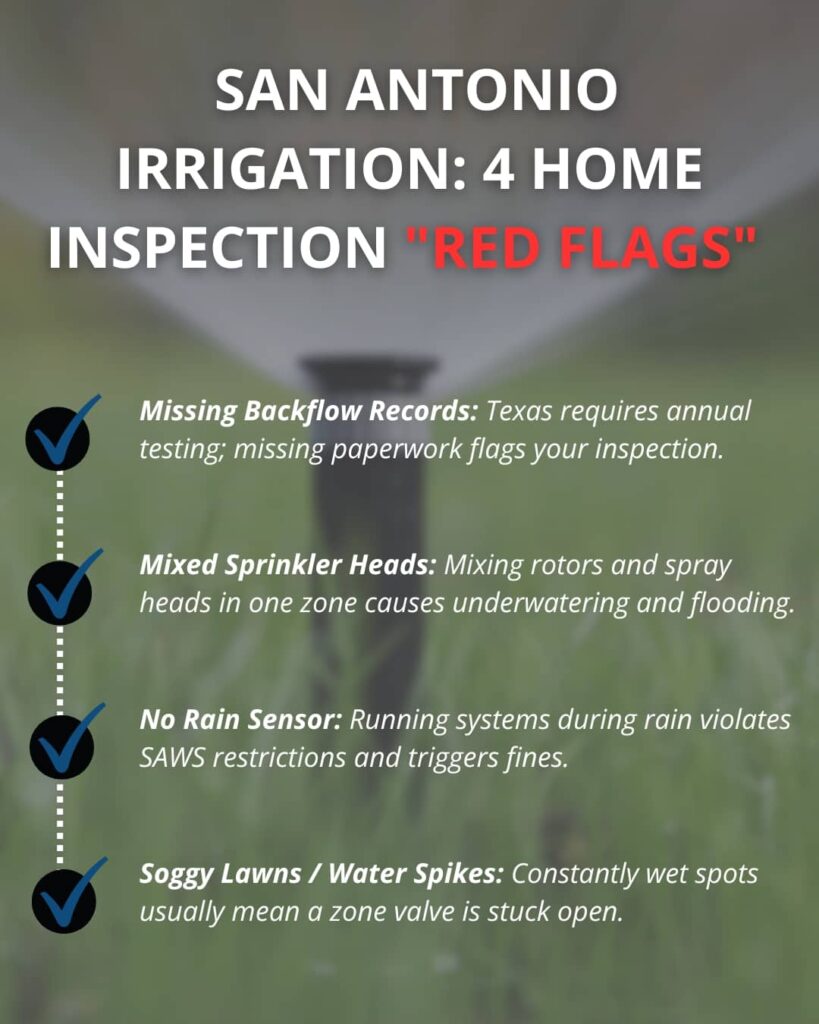

If documentation of that annual test is missing, it goes on the home inspection report. This is one of the most commonly flagged deficiencies we see on older San Antonio properties.
Three common types:
- Pressure vacuum breaker (PVB): Most common in residential. Must be installed above the highest irrigation head.
- Double-check valve assembly (DCVA): Used where a PVB won’t fit the grade requirements.
- Reduced-pressure zone device (RPZ): Highest level of protection; required for higher-hazard applications.
Replacement cost: around $280–$1,550 depending on type and size.
3. Zone Valves and the Valve Manifold
Zone valves control water flow to individual sections of your lawn. A zone is a group of sprinkler heads served by one valve, your front yard might be zone 1, the backyard zone 2, and so on.
Valves are typically grouped together in a buried valve box (sometimes called a manifold). Each valve is wired back to the controller. When the controller triggers zone 1, it sends a 24-volt signal to that valve’s solenoid, which opens and allows water through the lateral lines.
Signs a valve is failing: one zone won’t activate, one zone won’t shut off (you’ll see a constantly wet area), or you hear a chattering sound when a zone is called. A stuck-open valve is a common cause of unexpected water bill spikes.
Replacement cost: $75–$215 per valve.
4. Supply Pipes and Lateral Lines
Irrigation systems use two pipe types in two different locations.
PVC pipe (Schedule 40) runs from the water source to the valve manifold on the main supply line. It handles up to 200 PSI and is rigid and durable underground.
After the valve, most residential installs use flexible polyethylene pipe (called “poly” or “funny pipe”) to connect to individual sprinkler heads. Poly is easier to route around roots and obstacles and absorbs minor ground movement without cracking.
In San Antonio, the caliche layer (the calcium-carbonate hardpan common throughout Bexar County and the Hill Country) makes trenching harder and more expensive.
Many systems here are installed shallower than in other regions, which means heads get struck by mowers more frequently. If you’re buying an older home and the inspection shows multiple damaged or sunken heads, shallow pipe installation is often the reason why.
5. Sprinkler Heads

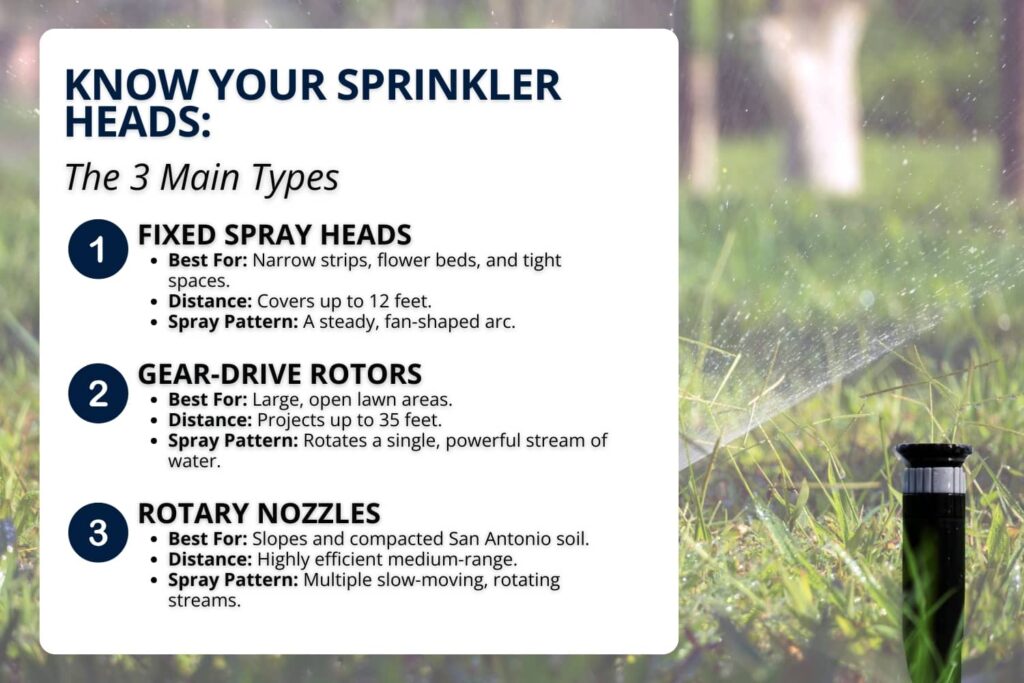

Sprinkler heads distribute water across each zone. There are three main types:
- Fixed spray heads emit a fan-shaped arc in a fixed direction. They cover up to 12 feet and work best for narrow strips, beds, and tight spaces.
- Gear-drive rotor heads use internal gearing to rotate and can project a single stream up to 35 feet. They’re efficient for large open lawn areas.
- Rotary nozzles (such as the Hunter MP Rotator) look like spray heads but deliver water in slow-moving rotating streams, similar to a rotor, but installed in a spray head body. These are the most efficient option for slopes and larger zones with compacted soil.
Mixing head types in the same zone creates uneven coverage: spray heads apply water much faster than rotors, so part of the zone drowns while the rest dries out. Flag any zone with mixed head types.
Replacement cost: $59–$150 per head including labor.
6. Rain and Soil Sensors
Sensors prevent the system from running when it doesn’t need to.
A rain sensor mounts on the eave or fence and interrupts the controller’s schedule when it detects rainfall.
Under SAWS watering stage restrictions, running an irrigation system during or immediately after rain is a violation, a rain sensor prevents that automatically. Most SAWS rebate programs require or incentivize rain sensor installation.
Soil moisture sensors go further: they measure actual soil saturation and hold the controller from activating when the ground already has enough water.
Many older San Antonio systems have no sensors at all. That’s a home inspection finding. The absence of a rain sensor is noted as a deficiency on properties where SAWS restrictions are in effect.
7. Pressure Regulators and Swing Joints
Two components that rarely appear in “parts of an irrigation system” articles but matter quite a bit:
Pressure regulators maintain water pressure at the correct operating range for your heads, typically 30–45 PSI for spray heads and 40–65 PSI for rotors. Without them, excess pressure causes heads to mist instead of spray, wasting water and producing poor coverage.
Many San Antonio homes have street pressure in the 70–90 PSI range; without regulation at the head, misting and overspray are common.
Swing joints are the short, flexible connectors between the lateral pipe and each sprinkler head. They act as shock absorbers. When a mower clips a head, the swing joint absorbs the impact instead of the pipe cracking.
Systems installed without swing joints tend to need more pipe repairs over their lifespan.
What It Costs to Repair or Replace Each Part
Use this as a reference when evaluating irrigation repair estimates on a home you’re buying or a system you own.
| Component | Typical Repair/Replacement Cost |
|---|---|
| Controller (smart) | $150–$250 |
| Controller (basic timer) | $50–$100 |
| Backflow preventer | $280–$1,550 |
| Zone valve | $75–$215 |
| Valve solenoid only | $15–$35 |
| PVC mainline pipe repair | $150–$370 |
| Sprinkler head | $60–$110 per head |
| Rain sensor | $50–$150 installed |
| Pressure regulator | $20–$80 per head |
| Full system replacement | $3,000–$8,000+ |
Emergency service calls (nights, weekends) typically add $100–$250 to any job. If a home inspection reveals multiple failing components, compare the total repair bill to the replacement threshold: when annual repairs approach 50% of a new system install, replacement is usually the smarter financial decision.
If you’re under contract on a home and the irrigation inspection turns up significant repairs, you now have documented costs for your negotiation. That’s one reason buyers ask for a full inspection that includes the irrigation system, read more about what our full home inspection covers.
Related Questions to Explore
Do I need a backflow preventer on my lawn irrigation system in Texas?
Yes. Texas state law, enforced by the TCEQ, requires a backflow preventer on any irrigation system connected to a potable water supply. In San Antonio, it must be installed by a licensed irrigator or plumber, and a TCEQ-certified backflow tester must test it every year. If documentation of that annual test is missing from the property file, that’s a home inspection finding. The type of backflow preventer required (PVB, DCVA, or RPZ) depends on the hazard level and installation height.
What is the difference between a rotor, a spray head, and a rotary nozzle?
Spray heads cover up to 12 feet in a fixed arc. Rotors use internal gears to spin and project a single stream up to 35 feet. Rotary nozzles (like the Hunter MP Rotator) fit a spray head body but distribute water in slow rotating streams, rotor efficiency in a smaller head. Mix types in the same zone and you’ll get uneven coverage. For more on what shows up in a full inspection, see our VA home loan inspection checklist, irrigation is often on it..
What type of pipe is used for underground sprinkler systems?
The supply line from your water source to the valve manifold uses PVC pipe (Schedule 40), which handles up to 200 PSI. After the valves, most residential systems switch to flexible polyethylene pipe (“poly” or “funny pipe”) to connect to individual heads. In San Antonio’s caliche soil, the depth and protection of buried pipe varies significantly by contractor and age of the system..
What irrigation components are required by code in San Antonio?
At minimum: a licensed-installed backflow preventer (tested annually per TCEQ), a functional rain sensor (required under SAWS watering restrictions), and a controller that supports odd/even scheduling. Homes built before 2009 often don’t have all of these in place. During a home purchase, a full inspection that covers the irrigation system can identify missing components before you close.
When to Call a Professional
Most homeowners can handle straightforward irrigation maintenance on their own: capping a leaking head, adjusting a spray arc, replacing a nozzle, or tweaking a controller schedule. Some irrigation tasks require a licensed professional, and in Texas the lines are clearly defined.
Licensed irrigator or plumber required for:
- Backflow preventer installation or replacement (Texas Commission on Environmental Quality requirement)
- New zone design or adding zones to an existing system
- Connecting or rerouting mainline supply pipe
TCEQ-certified backflow tester required for:
- Annual backflow preventer testing (documentation must be on file)
Licensed irrigator required for:
- Any new irrigation system installation in Texas
- Major system re-design, including zone layout changes
Situations where an irrigation inspection makes sense before proceeding:
- You’re buying a home and want an objective evaluation of zone function, head condition, backflow compliance, and controller programming
- You’ve had recurring water bill spikes and can’t identify the source zone
- A home inspection flagged irrigation system deficiencies and you need a repair estimate baseline
For home buyers in San Antonio, Gatewood Superior Inspections evaluates the irrigation system as part of our full home inspection Shannon Gatewood (CMI, TREC #22649) has over 25 years of construction and inspection experience. We can tell you whether a system needs a $60 head swap or a $5,000 overhaul, and that difference matters when you’re negotiating a contract. Call us at (210) 426-1332 or schedule online anytime.
For outdoor systems beyond irrigation, our septic inspection service covers another major underground system that buyers often overlook in Texas.
Conclusion
A lawn irrigation system has more parts than most homeowners realize, and each one has a specific job. The controller times the zones, the backflow preventer protects your drinking water, zone valves direct water where it needs to go, pipes get it there, and heads put it on the lawn. Rain sensors keep you compliant with SAWS restrictions. Pressure regulators and swing joints protect the system from daily wear.
A few things worth remembering:
- The backflow preventer is legally required in Texas and must be tested annually by a licensed tester.
- Missing sensors are both a water waste problem and a code compliance flag.
- Caliche soil and shallow pipe installs make San Antonio systems more vulnerable to head damage than systems in most other climates.
If you’re buying a home and want to know what condition the irrigation system is actually in before you close, our full home inspection covers it. We look at zone function, controller programming, head condition, backflow compliance, and more. Schedule online or call us today.
